B-Tek 48" x 48" 4 SQUARE Floor Scales and Pallet Weighing Systems

Central Carolina Scale sells and services Economical B-Tek "4 SQUARE" 4'x4' Platform 5000 lbs. Floor Scales

B-Tek 4 SQUARE Platform Floor Scale

The B-Tek 4 SQUARE low-profile platform floor scale offers quality construction and components at an affordable price! The 4 Square pallet scale is built to meet the requirements of light industrial and commercial business applications.

The quality construction starts with a heavy structural channel sub-frame topped with laser cut diamond tread plate decking. This combination forms a tough, rigid weighbridge. Nickel-plated tool steel load cells are used in conjunction with a top access watertight junction box. Level Flex rubber feet are fully adjustable and provide a stable base with flexibility to compensate for imperfect mounting surfaces. For lifting convenience, a threaded eyebolt hole is located in the center of the weighbridge. Be sure to add a B-Tek BT 84 Digital Weight Readout or BT84-XL Digital Indicator to your 4 SQUARE Floor Scale!

Available in the standard capacity of 5,000 lbs.
48" x 48" (4' x 4') Dimensions
Threaded lifting eye bolt hole in center of platform
Nominal height of 4-3/8"
Standard Top Access Junction Box w/ FRP J.Box
Standard options include ramps and bumper guard

Brochure

Options Available
Ramps
Bumper guard
Floor anchor plates
Indicator Stand

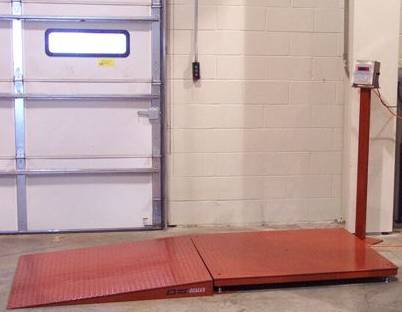

Platform shown w/ optional ramp and indicator/stand

Call (919) 776-7737 or email us for more information or to request a quote
