B-Tek BT 84 XL Digital Weight Indicator and Customized Weighing Systems

Central Carolina Scale sells and services B-Tek Digital Weight Readouts

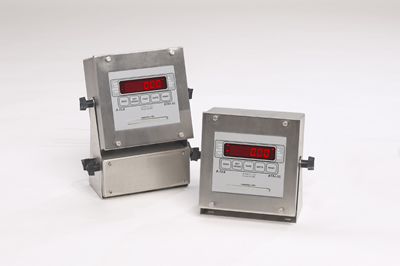

B-TEK BT84XL Digital Indicator

B-TEK's BT84-XL Digital Scale Indicator is manufactured for years of reliable, cost-efficient operation. With standard features found in more expensive units, this indicator will meet many common weighing applications.

Features and Specifications
BT84XL

6 Digit, 0.56" LED Digits
Up to 50,000 Displayed Counts
(1) Bi-Directional RS232 Port, (1) RS232 or 20ma Current Loop
10 Displayed Updates/Second
Selectable Digital Filtering
0.002% Linearity Over Range
-10° C to 40°C Operating Temp.
Stainless Steel NEMA 4X Enclosure
Tilt Stand

Line Powered AC operation 110vac/220vac
Push Button Tare
Push Button Zero
Auto Zero
Lb/Kg Conversion
Digital Calibration Recapture
10VDC Excitation
Extended Parameters for Ease of Troubleshooting
Customizable Serial String
Can be configured as Remote Display
Powers up to (8) 350 ohm Load Cells
10,000 Divisions NTEP Approved

Options:

Open Collector Set Point Relay Board
Date and Time
Battery Option

Call (919) 776-7737 or email us for more info or to place an order
